Deburring and edge rounding of metal cut parts up to 1600mm width.
The DM11600 ZC are deburring and edge rounding machines for sheet metal and parts cut by punching, shearing, laser or plasma.

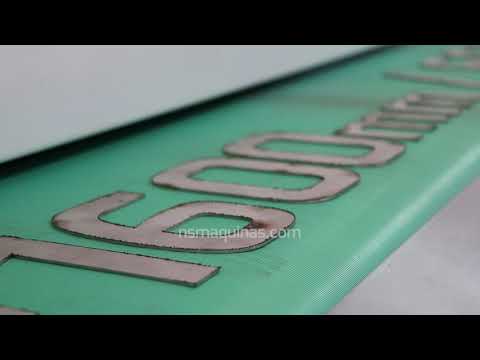

Removing burrs and creating round edges using cross belts technology is possible on parts up to 1600mm width and on some as small as 50x50mm.
Inside and outside contours of stainless steel, steel and aluminum parts cut by laser or other thermal processes are burrs cleaned from the total surface.
| DM1350 ZC | DM1600 ZC | |
| Working capacity (mm) | 1350x120 | 1600x120 |
| No. belt stations (Z) | 1 | 1 |
| No. cross belt stations (C) | 1 | 1 |
| Abrasive belt dimensions (mm) | 1350x2200 | 1600x2200 |
| Abrasive belt speed (m/s) | 8-22 | 8-22 |
| Cross belt speed (m/s) | 2-8 | 2-8 |
| Feeding speed (m/m) | 0.9-13 | 0.9-13 |
| Abrasive belt motor (kW) | 18.5 | 22 |
| Cross Belt Motor (kW) | (2x) 3 | (2x) 4 |
| Feeding motor (kW) | 0.37 | 0.75 |
| Total power (kW) | 27 | 32 |
| Consumption (A) | 55 | 65 |
| Dust extraction connection per head (Ø mm) | (2x) 150 | (2x) 152 |
| Dimensions (mm) | 2500x2300x2250 | 2830x2250x2250 |
| Weight (kg) | 3600 | 4860 |
